GUIDE: Making a DIY Single Wiper.

Postby ZetecSX on Sun Oct 26, 2003 8:30 pm

Single wiper conversion..... :aviator:

Right pay attention class there will be a test at the end. :D

Tools you will need:

1, Hacksaw,
2, Vice
3, Hammer
4. 13mm spanner
5. Angle grinder (or a file and some excess energy)
6, Drill
7, Small round file

Procedure:

1, Nip down 2 your local scrapyard and get yourself another wiper assembly (Just in case it all goes horribly wrong or don’t get it done all in one day)

2, Remove the link arms from the assembly (use a spanner to pop the plastic cups off the metal balls)

3, Cut the round tube on the drivers side off next to the main section of the linkage.

4, Unbolt the centre arm (with the double ball) from the motor.

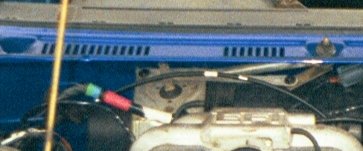

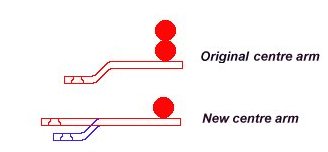

5, Taking the drivers side section you cut away. Cut the rotating arm (with the ball) off next to the rod that passes through the fixed section of the linkage. This cut needs to be made as close as possible to make the new centre link as long as possible.

6, Drill a hole in the end of the piece that you just cut. This hole needs to be the same as the one in the end of the original centre link (the double balled one) File it to suit the motor shaft. Grind the end round where you cut it to make it look professional !

7, Put the same section in the vice and bend it to resemble the original centre link.(but longer) You need to make clearance for the linking rod to pass over the centre shaft.

8, Now reassemble the linkage but leave the centre nut very loose.

9, Remove the wiper assembly from your car. And replace with your freshly modified version.

10, Turning your attention to the wiper arm. Either use one from a car with a single wiper as standard (Citroen BX is suitable.) or put one of your existing wipers into the vice and straighten it. (the best you can do is a strange shape still though.

11, Position the wiper arm in line with the linkage arm on the other side of the scuttle panel.

12, Wipe the screen once. (remember that nut is loose so the wiper itself won't move.

13. Position the wiper on the screen manually where you want it. then tighten up the nut on the motor spindle. (should you wish to reposition the wiper later undo this nut and adjust it)

14, Make sure the linkage doesnt catch on its self or anything else. (if it catches on itself bend the flat bit on the passenger side to cure the problem)


Job done. Congratulations.

Right now 4 the test. See how many people turn up at next years shows with single wipers. :D

If anyone needs any clarifiction i will do me best!

[stickied by Proj]
Last edited by ZetecSX on Mon Oct 27, 2003 4:34 am, edited 4 times in total.
ZetecSX
Post Master
Post Master

Posts: 530
Joined: Thu Jan 01, 1970 1:00 am
Location: Norwich Drives: Sierra Sapphire 2.0 Ghia. Rebuilding: Fiesta SX 16v

Postby xrsi on Sun Oct 26, 2003 8:54 pm

PICS MATE! not sure what u mean by all the center linkage etc!
xrsi
XR(ustyAtTheMo)SI
XR(ustyAtTheMo)SI

Posts: 7351
Joined: Thu Jan 01, 1970 1:00 am
Location: shropshire

Postby RS_Rawli on Sun Oct 26, 2003 10:04 pm

what a guy :D :D
RS_Rawli
Elite Post Master
Elite Post Master

Posts: 10019
Joined: Wed Mar 13, 2002 12:00 am

Postby Percy! on Sun Oct 26, 2003 10:28 pm

Pics would be nice, will do it myself if it looks easy.
Percy!
Elite Post Master
Elite Post Master

Posts: 3354
Joined: Tue Jun 17, 2003 7:20 pm
Location: Manchester
Your car: Citreon

Postby mullen on Sun Oct 26, 2003 11:56 pm

why dnt use just buy the haynes fiesta maxpower manual it shows you how to do that an [ERRR] pics its got 31 easy steps!!!
i got it from halfords in warrington 4 £18.99

so now theres less chance of me f**kin any thin up on my car cause it shows me how to do most things properly.

:Q
mullen
Poster
Poster

Posts: 138
Joined: Wed Oct 01, 2003 8:29 pm

Postby bluefiestamk3 on Mon Oct 27, 2003 12:55 am

whoahh dude gotta be a sticky thread!

now dont go stickin any more fireworks in s**t bins! or peoples front gardens for that matter!

peace out

shamooooone! :P
bluefiestamk3
BANNED MEMBER

Posts: 2831
Joined: Mon Sep 29, 2003 10:25 pm
Location: Rugby, Warwickshire

Postby AndyRS1800 on Mon Oct 27, 2003 1:02 am

mullen wrote:why dnt use just buy the haynes fiesta maxpower manual it shows you how to do that an [ERRR] pics its got 31 easy steps!!!
i got it from halfords in warrington 4 £18.99

so now theres less chance of me f**kin any thin up on my car cause it shows me how to do most things properly.

:Q


Got it in front of me, as far as i can see it a DIY guide to fit a single wiper kit... ie buy the kit and this shows ya how to fit... I think...

Good guide mate...
AndyRS1800
Elite Post Master
Elite Post Master

Posts: 5239
Joined: Sun Aug 19, 2001 1:00 am
Location: Bolton.... Drives: Golf GTi Turbo for now

Postby ZetecSX on Mon Oct 27, 2003 4:30 am

bluefiestamk3 wrote:whoahh dude gotta be a sticky thread!

Thanks but...
bluefiestamk3 wrote:now dont go stickin any more fireworks in s**t bins! or peoples front gardens for that matter!

WTF????? :-?


Percy! wrote:Pics would be nice, will do it myself if it looks easy.

Pics added - go on save yourself £100 quid. AND get the wonderful sense of achivement when you done it!

ZetecSX
Post Master
Post Master

Posts: 530
Joined: Thu Jan 01, 1970 1:00 am
Location: Norwich Drives: Sierra Sapphire 2.0 Ghia. Rebuilding: Fiesta SX 16v

Postby wywywywy on Mon Oct 27, 2003 7:27 am

Guide nicely done :D
I wish you'd produce more guides like this!

So I can use BX wiper arm and save lots of $$$? :o
Some actual pics of the various stages would be nice to go with the diagrams :)
wywywywy
Elite Post Master
Elite Post Master

Posts: 1381
Joined: Thu Jun 19, 2003 8:23 pm
Location: Warrington, Cheshire

Postby PhatFesZs on Mon Oct 27, 2003 11:29 am

that wiper on that fiesta is nearly touching the rubber screen aint it!?!

what size blade is that?,i used a super small one from halfords which sits 8-10" off the top where the rubber screen is.
"R.I.P Elm_Us 2004"
PhatFesZs
Elite Post Master
Elite Post Master

Posts: 6408
Joined: Fri Aug 09, 2002 7:25 pm
Location: U.k/Hants/Southampton

Postby Percy! on Mon Oct 27, 2003 2:09 pm

WIll the arm do a 180 degress swipe to clear the whole windscreen, I am a bit confused as it would only go to 90 on the current motor won't it?

Also can it be set to be at the bottom when not in use as I don't really like them up the centre of the screen.
Percy!
Elite Post Master
Elite Post Master

Posts: 3354
Joined: Tue Jun 17, 2003 7:20 pm
Location: Manchester
Your car: Citreon

Postby RS_Rawli on Mon Oct 27, 2003 2:12 pm

Percy! wrote:WIll the arm do a 180 degress swipe to clear the whole windscreen, I am a bit confused as it would only go to 90 on the current motor won't it?

Also can it be set to be at the bottom when not in use as I don't really like them up the centre of the screen.
no it only sweeps the passenger side of the screen, and you can only park it vertically

read it, what do u think :rolleyes:
RS_Rawli
Elite Post Master
Elite Post Master

Posts: 10019
Joined: Wed Mar 13, 2002 12:00 am

Postby PhatFesZs on Mon Oct 27, 2003 4:29 pm

to get the full effect of having the whole screen cleared you have to postion is 1/4 way up from the bottom of the screen on the passenger side mate :)
"R.I.P Elm_Us 2004"
PhatFesZs
Elite Post Master
Elite Post Master

Posts: 6408
Joined: Fri Aug 09, 2002 7:25 pm
Location: U.k/Hants/Southampton

Postby TJ on Mon Oct 27, 2003 6:21 pm

Any chance you can change the highleted section on this to blue, or anyone infact, cos im colour blind and cant really see whats highlighted or not!

Infact, can someone do all the pics please.

Cheers!
TJ
Elite Post Master
Elite Post Master

Posts: 18051
Joined: Fri May 04, 2001 1:00 am
Location: Wales

Postby eXtreme-fiesta on Mon Oct 27, 2003 6:35 pm

the guide looks brilliant, however the process looks very confusing to me :(

Think il save myself the bother and stick with two wipers!
Jamie
eXtreme-fiesta
Fiesta XR1.3i
Fiesta XR1.3i

Posts: 2307
Joined: Thu Dec 05, 2002 10:48 pm
Location: Essex, UK Drives: Fiesta Zetec-S

Postby Percy! on Mon Oct 27, 2003 7:44 pm

it wouldn't pass an MOT unless the wiper is down at the bottom when off would it?

I am still failing to see how it would do a full 180 movement :-?
Percy!
Elite Post Master
Elite Post Master

Posts: 3354
Joined: Tue Jun 17, 2003 7:20 pm
Location: Manchester
Your car: Citreon

Postby ZetecSX on Tue Oct 28, 2003 1:54 am

Righto. Some more answers.
Percy! wrote:it wouldn't pass an MOT unless the wiper is down at the bottom when off would it?

The red fiesta passed the MOT with the wiper parked vertically (was given an advisory for it tho.)

Percy! wrote:I am still failing to see how it would do a full 180 movement

RS_Rawli wrote:
Percy! wrote:WIll the arm do a 180 degress swipe to clear the whole windscreen, I am a bit confused as it would only go to 90 on the current motor won't it?

Also can it be set to be at the bottom when not in use as I don't really like them up the centre of the screen.

no it only sweeps the passenger side of the screen, and you can only park it vertically

read it, what do u think

Because the linkage is modifiyed (the bit that bolts to the motor is lengthened the wiper sweeps further. With a standard linkage it would only sweep 1/2 the screen. The red car wiper swept from rubber to rubber.

percy! wrote:Also can it be set to be at the bottom when not in use as I don't really like them up the centre of the screen.

The wiper can be positioned anywhere on the screen.

Tonys_Phatfiesta wrote:.that wiper on that fiesta is nearly touching the rubber screen aint it!?!

what size blade is that?,i used a super small one from halfords which sits 8-10" off the top where the rubber screen is.

The arm on the red car is a standard fiesta arm straightened with a standard wiper blade.

wywywywy wrote: So I can use BX wiper arm and save lots of $$$?

Yes and No the only bits i use are the wiper arm from a BX not the linkage. (i.e. only the bit you can see with the bonnet shut.) And a mk3 fiesta linkage.(the bit hidden underneath)

TJ wrote: Any chance you can change the highleted section on this to blue, or anyone infact, cos im colour blind and cant really see whats highlighted or not!

Infact, can someone do all the pics please.

Cheers!

I have used black red and blue in my pics. i havnt highlighted any thing the different colours represent different parts of the wiper linkage.

Think thats covered all points raised.
ZetecSX
Post Master
Post Master

Posts: 530
Joined: Thu Jan 01, 1970 1:00 am
Location: Norwich Drives: Sierra Sapphire 2.0 Ghia. Rebuilding: Fiesta SX 16v

Postby Percy! on Tue Oct 28, 2003 1:39 pm

its all starting to make sense now, one last question, how much we lookin at for another wiper assembly thing from a breakers (so I don't get ripped off)
Percy!
Elite Post Master
Elite Post Master

Posts: 3354
Joined: Tue Jun 17, 2003 7:20 pm
Location: Manchester
Your car: Citreon

Postby TJ on Mon Nov 17, 2003 6:42 pm

Sorry its the red bits that dont stand out to me.

Good guide though!
TJ
Elite Post Master
Elite Post Master

Posts: 18051
Joined: Fri May 04, 2001 1:00 am
Location: Wales

Postby AC 2003 on Wed Nov 26, 2003 5:06 pm

Where can u get a get a decent looking single wiper cause the standard 1 looks shocking i think.
AC 2003
Post Master
Post Master

Posts: 833
Joined: Sat May 17, 2003 12:47 pm
Location: B'mouth, Dorset

Postby RS_Rawli on Sat Dec 20, 2003 6:57 pm

gonna do this tomorrow but i dont see how u can change the parking position, as if you park it in the centre it will do 180 onto teh bonnet, or if its designed to do 90 each way from centre it will do 90 onto the bonnet when parked on the passenger side?

rawli
RS_Rawli
Elite Post Master
Elite Post Master

Posts: 10019
Joined: Wed Mar 13, 2002 12:00 am

Postby Xr2i lookalike on Fri Jan 09, 2004 5:52 pm

Cheers buddy. Did mine today, took me a few hours tho on and off cos i cheated by not using a vice or a grinder. Looks smart and saved a wedge, great guide. Ive got a problem tho :-? , ive got it sittin in the centre but would prefer it jus 1/4 way up on passenger side. When i adjusted it like someone said above it hit the bonnet. Not a problem as it looks well smart anyways.

Get writing up some more guides, Carl :Q
Xr2i lookalike
Newbie Poster
Newbie Poster

Posts: 14
Joined: Wed Jan 07, 2004 1:36 pm

Postby ZetecSX on Wed Feb 04, 2004 3:34 am

Whos Carl?!?!?!?! :-?
ZetecSX
Post Master
Post Master

Posts: 530
Joined: Thu Jan 01, 1970 1:00 am
Location: Norwich Drives: Sierra Sapphire 2.0 Ghia. Rebuilding: Fiesta SX 16v

Postby badj on Tue May 11, 2004 11:59 am

xr2i_lookalike is carl :p

i got pulled the otha day n given a 14day cos i only had one wiper????
(a.k.a. single wiper conversion)

bizzies r thick fair do's!!
they wer lookin for anythin n everthin to do me for. all they got was a rear bulb n the wiper which wasnt even a problem!
badj
Senior Poster
Senior Poster

Posts: 219
Joined: Tue Apr 20, 2004 9:25 am
Location: N/Wales

Postby phatboy on Tue May 11, 2004 1:12 pm

badj wrote:xr2i_lookalike is carl :p

i got pulled the otha day n given a 14day cos i only had one wiper????
(a.k.a. single wiper conversion)

bizzies r thick fair do's!!
they wer lookin for anythin n everthin to do me for. all they got was a rear bulb n the wiper which wasnt even a problem!


stupid fuckin retards, thats most citreons ever made off the road then! :lol:
phatboy
Elite Post Master
Elite Post Master

Posts: 2339
Joined: Mon Jul 07, 2003 12:34 am
Location: Jersey

Postby badj on Thu May 13, 2004 10:55 am

i kno! i asked the woman at the public entrance to the copshop n she sed she didnt kno why id bin done cos her car only has one!

i think fiat uno's and a few citroens have single wipers.
badj
Senior Poster
Senior Poster

Posts: 219
Joined: Tue Apr 20, 2004 9:25 am
Location: N/Wales

Postby capable on Tue May 25, 2004 7:30 pm

Hi guys i got a single wip on me fez in the dry it stops upright but when wet it skates over to drivers side any tips fanks
capable
Newbie Poster
Newbie Poster

Posts: 43
Joined: Thu Feb 19, 2004 7:01 pm
Location: oxford

Postby Max M4X WW on Tue Aug 17, 2004 3:43 pm

Just done this, Cheated by using standard middle bit as it started to rain and it doesnt sweep the whole screen.

Dont see how a bit of metal a few mm longer is gonna make much difference :-? But ill have a go tomorrow!

Max
Max M4X WW
Elite Post Master
Elite Post Master
User avatar
Posts: 18161
Joined: Sun Jun 22, 2003 9:52 pm
Location: Hampshire
Your car: Merc CL500

Car: 2014 BMW M135i

Postby mr_fez on Wed Mar 09, 2005 2:10 am

Thinking about doing this mod. Any advice when doing it?

Will the car pass it MOT which is due soon?

Thanks James
mr_fez
Post Master
Post Master

Posts: 715
Joined: Wed Sep 08, 2004 9:19 pm
Location: Loughborough, Leicestershire

Postby Percy! on Wed Mar 09, 2005 1:39 pm

Mine just passed the MOT with this so you should be ok.

The hardest bit I found was actually getting to the wiper motor etc
Percy!
Elite Post Master
Elite Post Master

Posts: 3354
Joined: Tue Jun 17, 2003 7:20 pm
Location: Manchester
Your car: Citreon

Postby mr_fez on Wed Mar 09, 2005 2:21 pm

What did you do to take it out then just so i dont sruggle as much im not technically minded lol. :lol:

I really want to do this mod but im not sure whether the end result will be worth it? Do you think its looks nicer than 2 wiper arms?

btw what wiper arm have you used?

Cheers

James
mr_fez
Post Master
Post Master

Posts: 715
Joined: Wed Sep 08, 2004 9:19 pm
Location: Loughborough, Leicestershire

Postby thomasfrst on Mon Mar 21, 2005 11:59 pm

Made one 4 my mate used a 306 later one(s reg) rear wiper arm looked like a proper kit as thick plastic arm
thomasfrst
Poster
Poster

Posts: 60
Joined: Thu Mar 10, 2005 7:09 pm
Location: Peterborough

Postby Max M4X WW on Tue Mar 22, 2005 12:02 am

thomasfrst wrote:Made one 4 my mate used a 306 later one(s reg) rear wiper arm looked like a proper kit as thick plastic arm

Any pics? Those arms dont look that long.
Max M4X WW
Elite Post Master
Elite Post Master
User avatar
Posts: 18161
Joined: Sun Jun 22, 2003 9:52 pm
Location: Hampshire
Your car: Merc CL500

Car: 2014 BMW M135i

Postby thomasfrst on Mon Apr 04, 2005 12:32 pm

no pics any as car got nicked and burnt out. had to change the blade as was slighty 2 short but not 2 bad
thomasfrst
Poster
Poster

Posts: 60
Joined: Thu Mar 10, 2005 7:09 pm
Location: Peterborough

Postby Gazeddy on Thu Aug 24, 2006 3:51 pm

great guide just saved me a bomb but still cost me 20 quid for a new linkage. which i didnt need :(
1.6 si coming soon
5 Door Register
Only motorcycle riders understand why dogs stick their heads out of car windows
Gazeddy
Elite Post Master
Elite Post Master

Posts: 1254
Joined: Mon Feb 13, 2006 11:52 am
Location: Leigh Nr Manchester


Twitter

The second 20th Anniversary article, a dive into the history of how the site came about is available here: https://t.co/kbCfZ4sf0R

17:44, 4th December 2021 Twitter Web App

To celebrate https://t.co/wXVkvJipaS being 20 years old this year, I've written a series of articles detailing the… https://t.co/B0vE0Y3KvP

17:42, 4th December 2021 Twitter Web App

Follow fiestaturbo.com on Twitter:
http://twitter.com/fiestaturbo/

RSS Feeds

Subscribe to the RSS feed

What is RSS?

RSS is a technology that lets you use special applications or modern browsers to notify you you when a site is updated. You can then read the updated content in that application or your browser.

To subscribe to these RSS feeds you need to copy the links above. For instructions on how to add it to the feeds you keep track of, consult the documentation of your RSS reader.
